RES-20C-HP

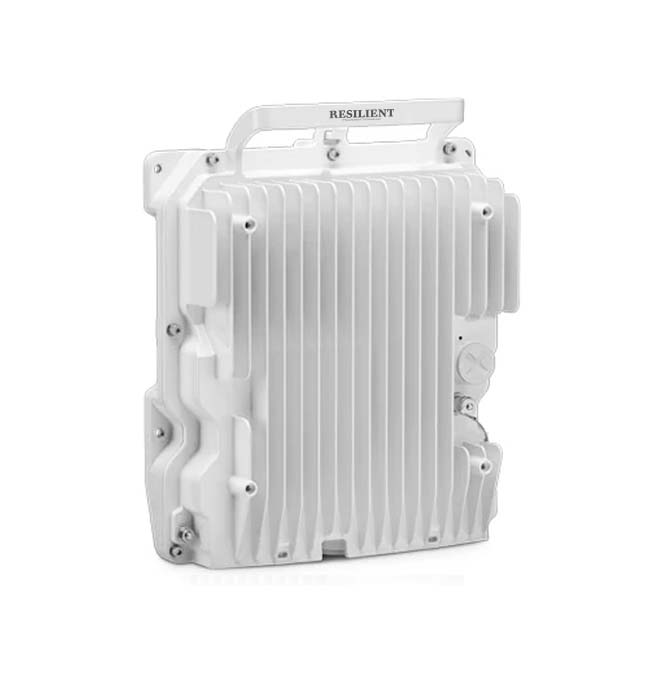

The FibeAir RES-20C-HP is a high-power, compact and all-outdoor wireless backhaul node that suits any network deployment scenario with long reach requirements, from aggregation sites to remote small cell mobile backhaul, and is designed to help you meet a wide variety of challenges throughout your network deployment.

Designed with flexibility to meet a wide variety of challenges throughout your network deployment, the RES-20C-HP enables 1Gbps radio capacity over a single 28MHz channel or 2Gbps over a single 56MHz channel.

The FibeAir RES-20C-HP operates in the 6GHz and 11GHz wireless backhaul bands.

With its multicore technology, the FibeAir RES-20C-HP allows you to continuously increase your operational efficiency and provide better quality of experience to your customers.

Description

Radio

6GHz to 11 GHz | Multi-core technology | Seamless 10-step hitless ACM | QPSK–2048QAM | 3.5 up to 56/80 MHz channels | 2Gbps radio capacity | Two integrated radio carriers in a single compact enclosure| Up to 8 carriers, in a multi-carrier configuration (4xIP-20C) | Integrated single unit XPIC | 4X4 LoS MIMO quadrupling radio capacity, using only 2 radio units | Advanced Frequency Reuse – enhancing network-wide spectral efficiency by allowing re-use of the same frequency at two adjacent links with angular separation of 15 degrees | Advanced Space Diversity – saving 25% of radios and antennas in SD configurations

Networking

All packet solution| Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Download Datasheet
